Audio and controlling software:

I use MAX/MSP as my development environment but I use it in combination with the FTM software from IRCAM.

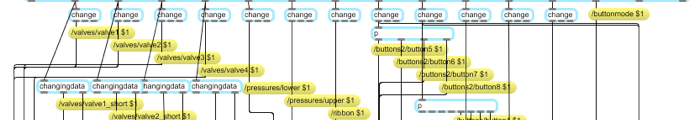

Instance 1: Controlling

In this Instance Max/MSP takes care of the communication between the computer and the Arduino. It receives information from the Arduino through the Serial object and does some routing. Apart from this the idea is to do some gesture analyses and some data reduction in this patch as well (depending on where the data will be sent). Read more here

Features: High scheduler rate MAX, no sound processing

Instance 2: Sound processing

In this Instance of Max/MSP the trumpetsound is processed with FFT and delay techniques, buffers etcetera. Creating a sound source to pick from. Read more here.

Features: Low scheduler rate MAX, sound processing with large vector lengths.

Instance 3: Envelope, attack, panning

This instance makes optimal use of the unique qualities of the Electrumpet. With the Electrumpet timed playing becomes feasible but only if the latency is kept to a minimum. Using short audio vector lengths on which the controller values can operate with a high resolution results in a direct connection to actions on the Electrumpet and the sounding audio. Read more here

Features: High scheduler rate MAX, sound processing with short vector lengths.
